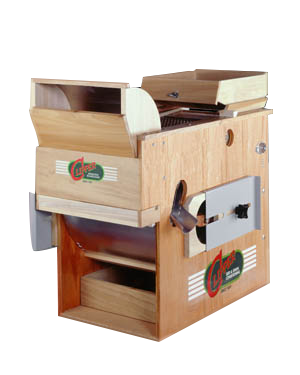

Accurate, dependable performance for small lot cleaning, testing, or sampling. Popular with vegetable and flower growers and in seed stores for specialized cleaning, grading, and sizing. Many laboratory uses.
Download the complete
Product Sheet
Please inquire for more information

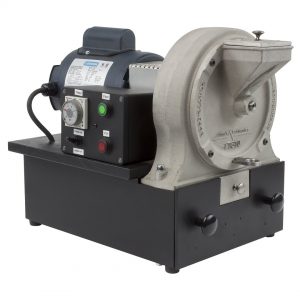

Dimo’s Barley Pearler is used to dehull barley for the determination of mellowness and heat-damaged kernels.
It uses a 30 grit stone and a No. 8 mesh stainless steel screen. With a 24 grit stone and a No. 7 mesh screen wheat can also be pearled to determine hardness. The hulled or pearled grain is discharged through a slot into the sample drawer, while the chaff and hulls are passed through a screen into a large catch drawer. Each unit is equipped with a 1/3 HP motor and a automatic timer that can be set to any desired time. Shaft guard also installed.
Dimensions: 20″L x 15″W x 18″H.
Weight: Net wt. 42 lbs. Ship wt. 47 lbs.
Made in Canada.

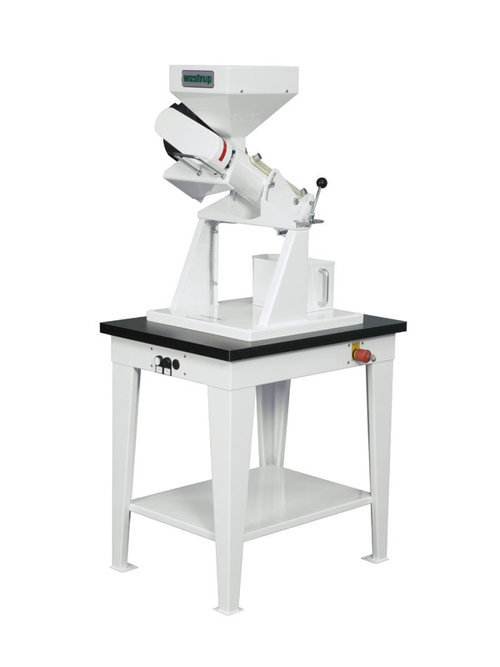

The LA-P de-awner for small-scale use is designed for batch or continuous flow operation; the main purpose of de-awning is to remove awns from barley kernels, loose husks from wheat, etc.
Please inquire for more information

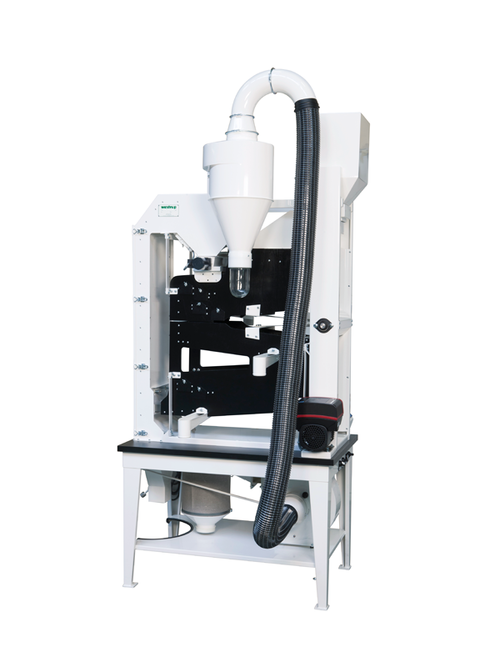

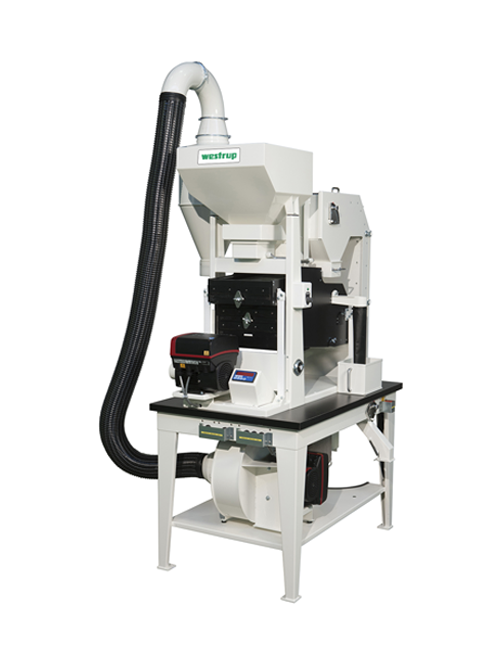

The LA-LS air/screen cleaner is a precision and fine cleaner for small scale production in research stations, institutes etc.
Please inquire for more information
The LA-DUAL small-scale aspirator is designed for separation of mixtures in two or three fractions of seed or grain according to the product’s aerodynamic characteristics in an air stream.
Please inquire for more information
The LA-DUAL small-scale aspirator is designed for separation of mixtures in two or three fractions of seed or grain according to the product’s aerodynamic characteristics in an air stream.
Please inquire for more information

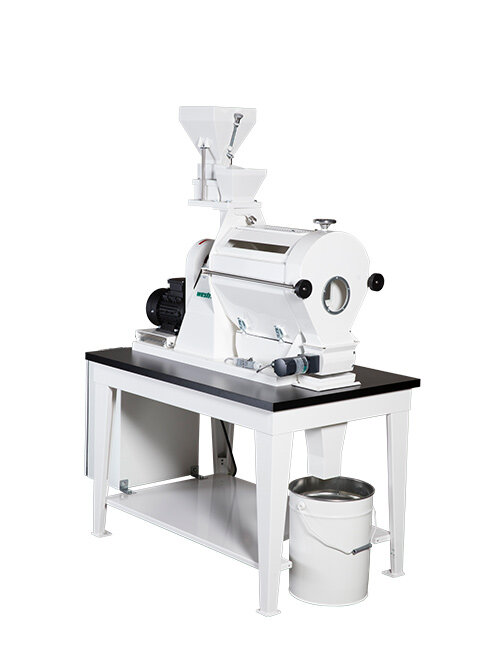

The LA-H brushing machine for small-scale use is designed for batch and continuous flow polishing, hulling or scarifying of small volumes of seed or grain samples prior to cleaning and grading.
Please inquire for more information
The LA-LST is a precision/fine cleaner/grader for small scale production in research stations, institutes etc.
Please inquire for more information
The LA-T indented cylinder for small-scale use is designed for continuous flow (or batch) separation where kernels with different lengths but otherwise similar dimensions can be separated from each other.
Please inquire for more information

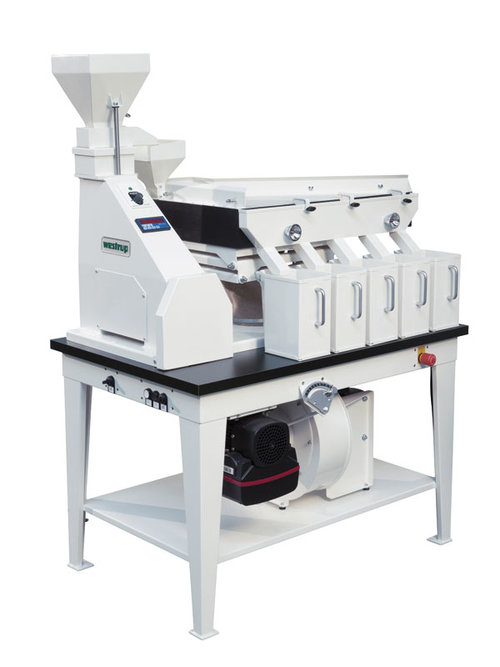

The LA-K gravity separator for small-scale use is designed for batch and continuous flow separation of small volumes of seed or grain, which have already been separated with regard to width, length, and thickness.
Please inquire for more information
The LA-H brushing machine for small-scale use is designed for batch and continuous flow polishing, hulling or scarifying of small volumes of seed or grain samples prior to cleaning and grading.
Please inquire for more information

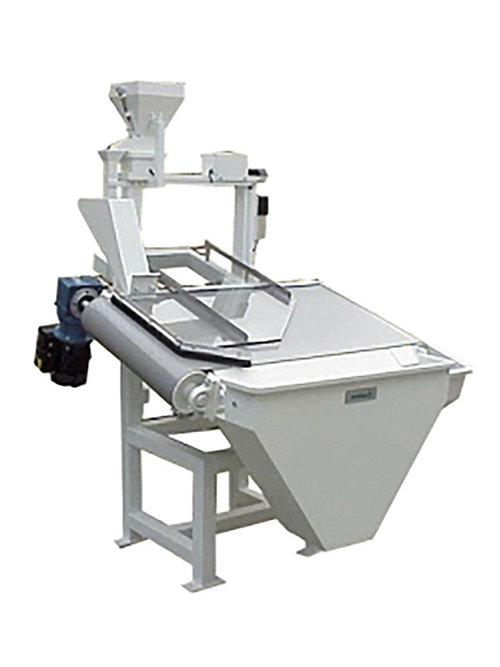

The LA-BG belt grader for small-scale use is designed for separation of rough surface seeds from smooth surface seeds – e.g. vegetable seeds such as beet seeds and flower seeds such as primula and begonia seeds.
Please inquire for more information

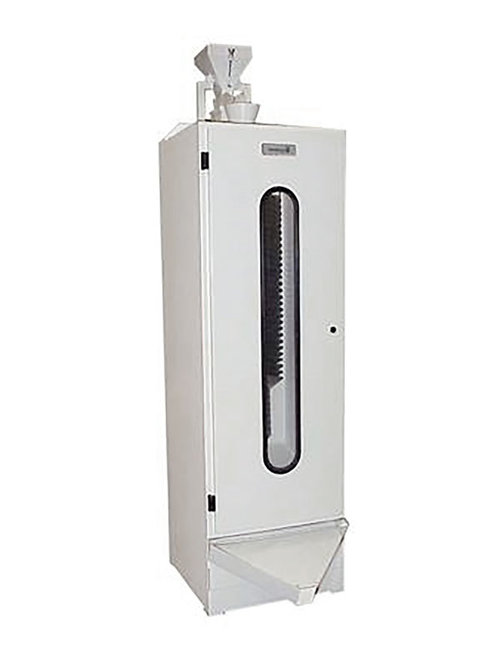

The LA-HT spiral separator is used to separate round seeds from flat seeds by means of gravity.
Please inquire for more information
The MCi Kicker and AutoKicker are sophisticated devices designed with precision-controlled screens and aspiration to accurately remove FM/Dockage and Broken/Splits from the grain.
Download the complete
Product Sheet
CORN SIEVE SET:
Consists of 12/64 round hole, 14/64 round hole and bottom pan, injection molded ABS frame system. Easily determine dockage in wet or dry Corn.
PEA SIEVE SET:
Consists of 8/64 slotted, 9/64 slotted and 11/64 slotted and bottom pan. For dockage estimation in Green or Yellow Peas.
SOYBEAN SIEVE SET:
Consists of 8/64 round hole and bottom pan. For dockage estimation in Soybeans.
HAND HELD DOCKAGE SIEVES:
Two piece injection molded frame design held together with six fasteners. Uses same perforated round hole and slotted material as before. Will not bend or warp or break.
CEREAL SIEVE SET:
Consists of 5 buckwheat (triangular cut), 6 buckwheat (triangular) and bottom pan. For dockage estimation in wheat, oats, barley and rye.
FLAX SIEVE SET:
Consists of 4 x 14 wire mesh, 4.5/64 round hole and bottom pan.
2 ft. sampler probe. 4 openings. End threaded to take 3/8 pipe (NPT). Takes larger sample than short probe.

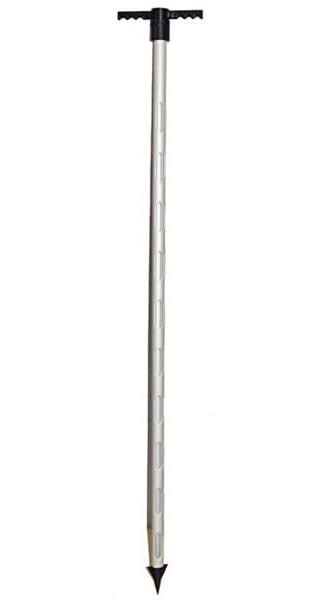

4ft. (41″): 8 openings, anodized aluminum – T Handle, 1 1/2″ diameter. approx. 104 cm length. Shipping weight 5 lbs.
6 ft. (69″): 10 openings, anodized aluminum – T Handle, 1 1/2″ diameter. approx. 175 cm length. Shipping Weight 7 lbs
8 ft. (2.4 m.): 14 openings, anodized aluminum – T Handle, 1 1/2″ diameter. Shipping weight 10 lbs.
10 ft. (3.1m.): 17 openings, anodized aluminum – T Handle, 1 1/2″ diameter. Shipping weight 12 lbs.
12 ft. : 17 openings, anodized aluminum – T Handle, 1 1/2″ diameter. Shipping weight 15 lbs.
Short sampler probe: (torpedo) 16″ (41 cm). 1 opening of 8 1/2″, with liquid crystal temperature sticker. End threaded to take 3/8″ pipe.
Nobbe probe 20″ x 1/2″ diameter: 1 opening of 1 1/2″. Copper.
6″ Nickel-plated Bag Trier: 1/2″ O.D. at large end.
12″ Nickel-plated Bag Trier: 1″ O.D. at large end.
13″ Nickel-plated Bag Trier: 1 1/2″ O.D. at large end. 7 3/8 long slot.
This probe is 9′ long with a single INFRA-RED sensor at the tip. Simply turn the probe on and connect using WI-FI. Open up the browser on your phone or other WI-FI device (IPOD or IPAD) and enter the IP address and the Temperature is Displayed. Have FUN probing your bin in any location after they are filled and get instant readings…Completely wireless with no cables to plug into….Multiple phones can connect to the same probe and display the temperature at the same time.
Thermometer is replaceable. Built in –10 to 100 degrees Celsius thermometer. Takes 3/8″ threaded rod extensions. Push into bin, wait 10-15 mins. Pull out and read temp.

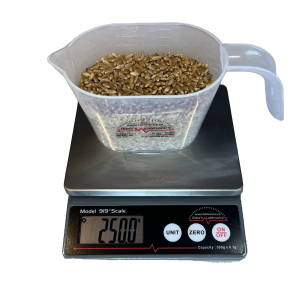

Dimo’s / Labtronics digital scale is a completely portable unit and comes with an AC adapter and a steel pan cover. Utilizes a 9V battery and has an Auto OFF feature. 2 year warranty.

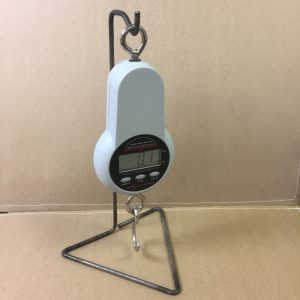

Dimo’s 75kg x 50grams or 165lbs x 0.1lb. Comes with AC adapter and takes a 9V battery. Larger Capacity. Perfect for calibrating air seeders. Tare and Hold function buttons. Auto OFF feature.

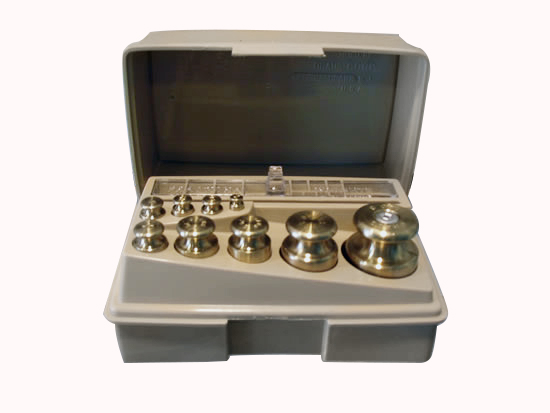

Individual weights available in 5, 20, 50, 100 and 200 gram sizes. Full Ohaus weight sets also available (includes 1-100gram, 1-50 gram, 2-20 gram, 1-10 gram, 1-5 gram, 2-2 gram and 1-1 gram individual weights.)
Ships Postal Mail

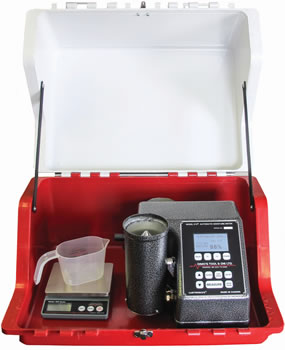

The fastest and most accurate Model 919® EVER! Accurate, Precise, Robust, Serviceable. The kit includes Automated Model 919® tester and 600g x 0.1g digital scale and storage case. 2 year warranty.
The Labtronics® Model 919® Moisture Meter used by producers, elevators, and government agencies has a proven history of both durability and reliability in an agricultural environment. The Classic kit includes the Model 919® moisture tester, 600g x 0.1g digital scale, storage case, book of charts, -10 to 110 degrees Celsius thermometer and 9 Volt battery clip for use in the field. This is a completely portable kit with a removable 3.5″ cell for fast and easy testing.
Automated Model® 919 with 3.5″ test cell and dump. Includes book of charts, AC adapter and operating manual. Optional battery pack & Printer are available upon request. Completely portable unit.

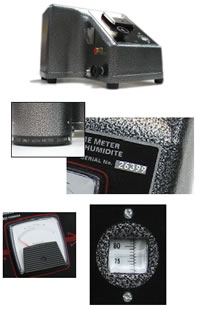

Classic Model 919 with 3.5″ test cell and dump. Includes book of charts, AC adapter, 9 Volt battery plug and glass thermometer. The Classic Model 919 now comes with the LED indicator light that changes from GREEN to RED when the absolute NULL point is reached….if you do not want to look at the needle just use the LED light. How cool is that !!!
Standard paper chart temps. are limited to between 11 and 30 °C. NEW Smart Charts II Benefit: Increases measuring range of the Model 919® by allowing users to enter temps. above 30 °C or below 0 °C.
Used to externally plug a 9 Volt battery into your Model 919 and provide power without having to open it up.
For use with Model 919 moisture testers that are approx. 10 years old or newer.
9 Volt digital switching AC adapter for Model 919 moisture tester.
There are some small differences in the power adapters used over the years. This adapter will not work with testers that are more than 15 years old as they may require an RCA type end on the adapter. The polarity of the adapter may also be center positive or negative.
Used for test weight determination. Used to determine grams/0.5 L which is then converted into into lbs./Bushel or kg./hL using conversion charts. Meets government agency specifications. New economical design.

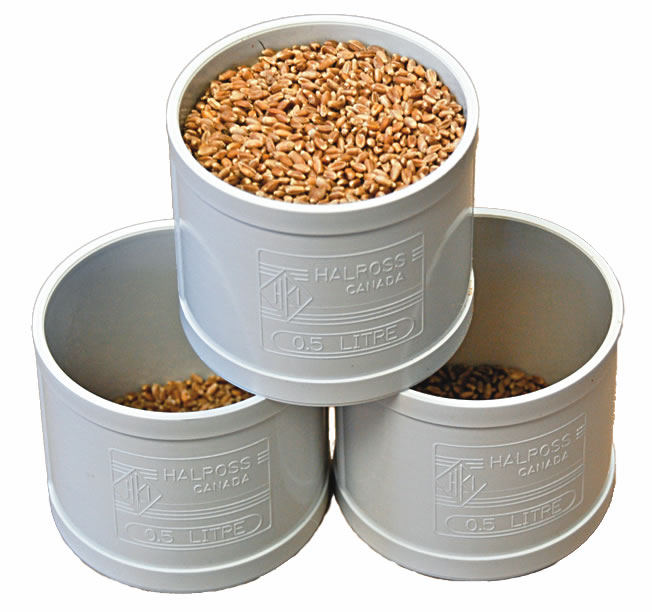

Includes New ABS Plastic 0.5L measure, ABS Regulation Cox Funnel, Strike-Off Stick and conversion charts. Bottom pan not included.
Placed on top of our .5 L measure. Standardizes the fill of the .5 L measure each and every time. Promotes more accurate and consistent test weight determination. Designed to meet government agency specifications with a 3.81cm drop from an opening of 4.41cm.
Standardize your grain sampling with our newly designed sample scoop. Red handle is 38” long and made of fibreglass which will not bend or break. Holds approx. 200 grams. Use for sampling solids or liquids.
